Our compact electric combi boiler will meet both your heating and hot water needs. This device operates on full modulation with the principle of heating water by electrical energy, that is to say it gives both comfort and safety. With a stylish digital touch screen display and control board, users are able to set the temperature for their heating between 35ºC and 80ºC and the domestic water temperature between 30ºC and 55ºC. The hot water flow rate is up to 6.9 Litres per minute.
The small dimensions of this compact electric combi boiler means you can install it almost anywhere in the property, as no flue or external wall is needed.

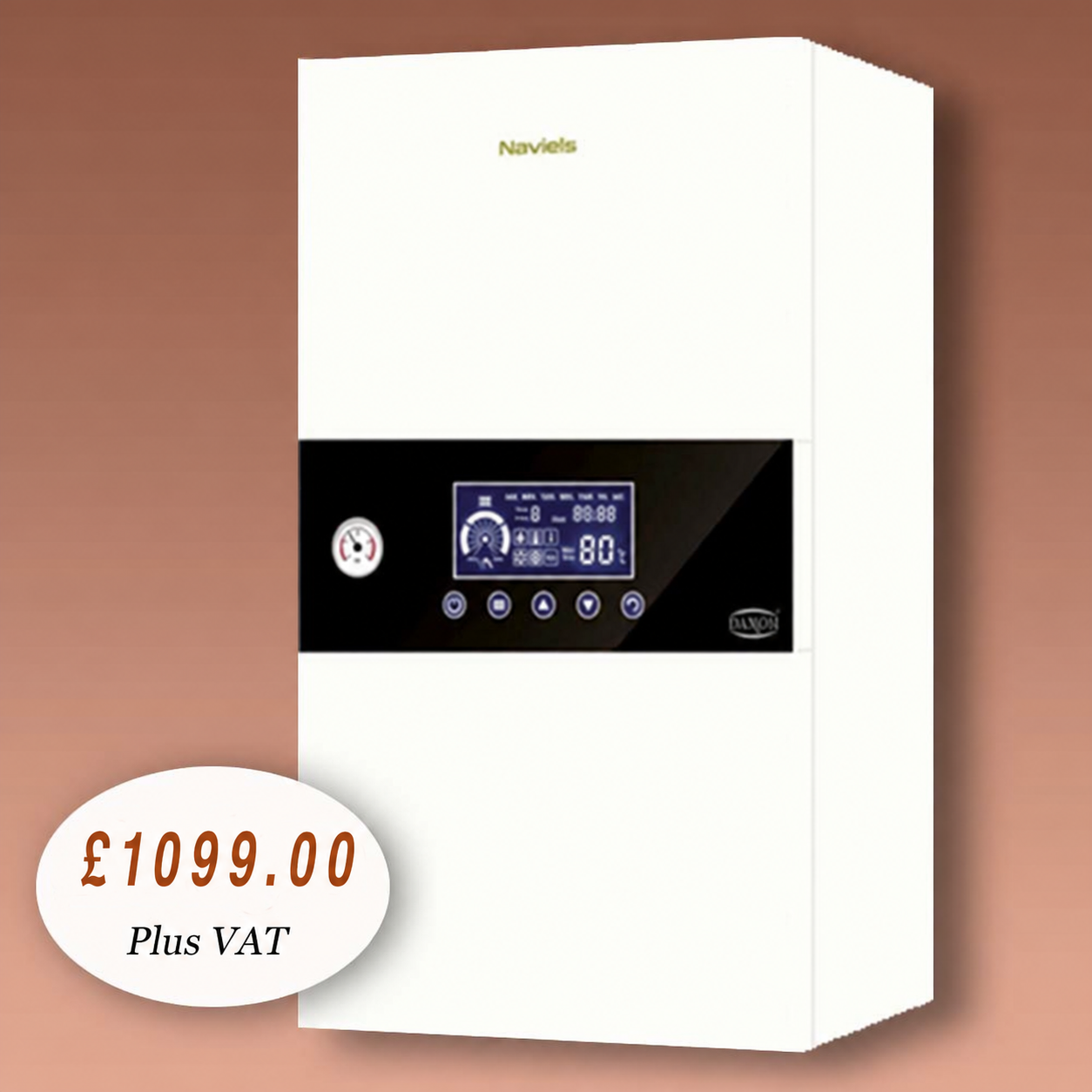

Daxom Compact Electric Combi Boiler Single Phase 12 kW
Is this 12kW electric combi boiler right for your property?
This compact 12kW model is designed for smaller properties where both central heating and domestic hot water are required without an integrated storage cylinder. It is a 230 V single-phase appliance, modulates from 2kW to 12kW and is specified for hot water delivery of up to 6.9 litres per minute.
Before choosing a 12kW electric combi boiler, the property’s heat loss and available electrical capacity should be checked. Hot water demand matters too: households needing a larger reserve of hot water should compare this compact model with the 12kW electric combi boiler with 50L cylinder or the larger floor-standing cylinder models.
Key features
- Clean, safe, economical, and environmentally friendly
- 99% efficient
- Does not produce carbon monoxide or condensate
- Continuous hot water

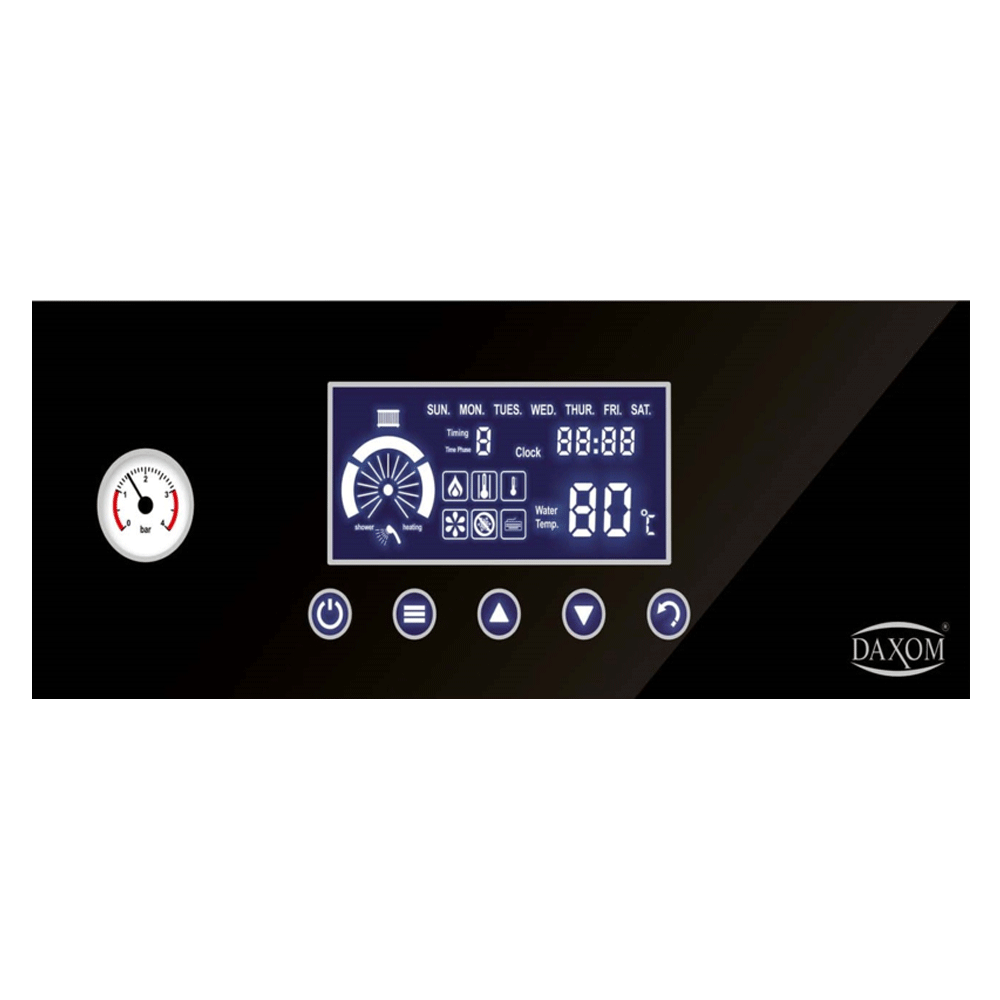

- Easy stylish touch screen operation, digitally displayed temperatures
- Works with any voltage free Smart Controls – Room Thermostat
- 230 V single phase
- Practically Silent
- Compatible with solar energy
- Works with radiators or under floor heating
- Modulates from 2 kW to 12 kW as a result using less energy
- Summer / Winter mode
- Hot water flow rate: up to 6.9 Litres per minute
- Compact size, 70 cm x 40 cm x 25 cm
- Simple installation, allows for installation almost anywhere
- Ideal for smaller properties
- Circulation ErP pump with integrated cycle control
- Double freezing prevention system
- Overheat security system
- Flow control security system
- Automatic flaunting purge valve
- Double over pressure security system
For broader system preparation and commissioning information, see our electric combi boiler installation guide.
To view installation manual for Daxom 12kW Electric Combi Boiler (UKDAX-12EDM) Click here > 12kW EDM Manual
To view the Installation check list for Daxom Electric Combi Boilers Click here > Daxom-Installation-Checklist
Frequently asked questions | 12 kW Daxom Model comparison
Follow us on Facebook
| Weight | 26 kg |
|---|---|
| Dimensions | 70 × 40 × 25 cm |
| brand | Daxom Naviels |
| gtin | 5060471730597 |
| mpn | UKDAX-12EDM |
| Package Contents | Daxom Boiler UKDAX-12EDM, Installation and Operation Manual. |
5 reviews for 12kW Compact Electric Combi Boiler
Add a review
Certification PDF Declaration Of Conformity
Certification PDF SAP Assesment
Certification PDF WRAS
